Exedy

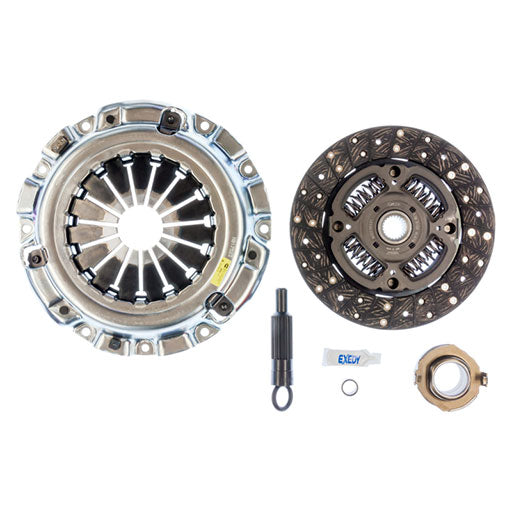

Exedy Stage 1 Organic Clutch Kit for 2004-2008 Mazda RX-8

Exedy Stage 1 Organic Clutch Kit for 2004-2008 Mazda RX-8

SKU:10812

Regular price $638.80 USD
Regular price Sale price $638.80 USD
Sale Sold out

In stock

View full details

Product Description

EXEDY Stage 1 Organic Racing Clutches only use premium friction materials that are resistant to slippage and burst. Increased clamp loads give the necessary capacity to handle modified engines. This is the ideal clutch for street and light horsepower track use. Drivability is similar to the stock clutch. Pedal efforts will be slightly higher because of the higher clamp loads. All of our Stage 1 clutch discs have spring center dampers to reduce drivetrain shock and provide smooth clutch engagement.

Clutch Cover
These clutch covers are designed to achieve a clamping load that is approx. 40% higher than the genuine part allowing a higher torque transmitting capacity. Ductile material is used for all pressure plates and, high burst strength can be achieved in all temperature ranges.

Ultra-Fiber Organic Disc
This advanced facing material provides the high heat resistance essential for motorsports. It was developed by reviewing both the copper wire ratio and the composition of the high strength fiber. The Ultra Fiber Disc maintains the superior half-engagement feelingspecific to the Organic material. With improved high heat resistance, it provides the functionality essential for street performance and mild racing applications.

EXEDY Lightweight Flywheel
EXEDY Lightweight Flywheels combine low weight, low inertia and high thermal capacity. They are designed for light to moderately tuned racing cars for drag racing, autocross and rally events, as well as street usage. They are made from solid one-piece billet chromoly steel or chromoly steel forgings. They are specifically designed to reduce weight and inertia for better engine response. Most incorporate special design features to enhance the airflow which improves the cooling of the clutch. The ring gear teeth are integrated onto the flywheel unlike an aluminum flywheel where the ring gear is pressed onto the flywheel and has the possibility of separating from the flywheel due to the different expansion coefficients of aluminum and steel. Newly available are lightweight, solid replacements for vehicles fitted with OE dual mass flywheels. EXEDY lightweight flywheels have passed engineering tests to 15,000-18,000 RPM. They are guaranteed not to fail to the said RPM, and are all SFI approved.

SFI Certification
All EXEDY Stage 1 Organic, Stage 2 Ceremetallic and Lightweight Flywheels carry SFI 1.1 Certification. Which means, when you buy these products, you can be confident they are certified for use in competitive motorsports.




Product Specifications

Disc Outer Diameter: 9.3" (236mm)
Input Shaft Spline: 1 1/16" x 23 Teeth
Spline Size: 26.2mm
Torque Capacity @ Wheels: 232 ft/lb
Clamp Load: 2000 Lbs
Package Dimensions: 13 X 3.5 X 3.5 Inches
Package Weight: 18.2 Lbs




Product Applications

  • 2008 Mazda RX-8 Touring R2 1.3L
  • 2008 Mazda RX-8 Sport R2 1.3L
  • 2008 Mazda RX-8 Grand Touring R2 1.3L
  • 2008 Mazda RX-8 40th Anniversary Edition R2 1.3L
  • 2007 Mazda RX-8 Base R2 1.3L
  • 2006 Mazda RX-8 Base R2 1.3L
  • 2005 Mazda RX-8 Shinka R2 1.3L
  • 2005 Mazda RX-8 Base R2 1.3L
  • 2004 Mazda RX-8 Base R2 1.3L




Product Documents

Warranty




Brand Information

EXEDY Globalparts Corporation (USA) is a wholly owned subsidiary of the EXEDY Corporation of Japan, which was founded in 1923. Our advanced engineering and patented innovations have made us an undisputed world leader of performance sports and racing clutches. EXEDY’s manufacturing business and prominent brand name, Daikin Clutch, are known throughout the world for supplying quality powertrain products.

OEM AND AFTERMARKET EXEDY Globalparts Corporation has evolved from the Daikin Clutch Corporation, and our products still carry the famous Daikin winged logo. In 1967 The US business was established, and since 1988 all EXEDY/Daikin products have been manufactured in the US for both OEM and the Aftermarket. The EXEDY Group supplies Manual Clutches, Flywheels, and other advanced Powertrain Components, to all 11 vehicle manufacturers in Japan. In addition, we supply many vehicle manufacturers in the construction and machinery industries worldwide, including GM and Ford. EXEDY Globalparts (USA) now distributes all EXEDY products to the aftermarket for all of North, Central, and South America.
