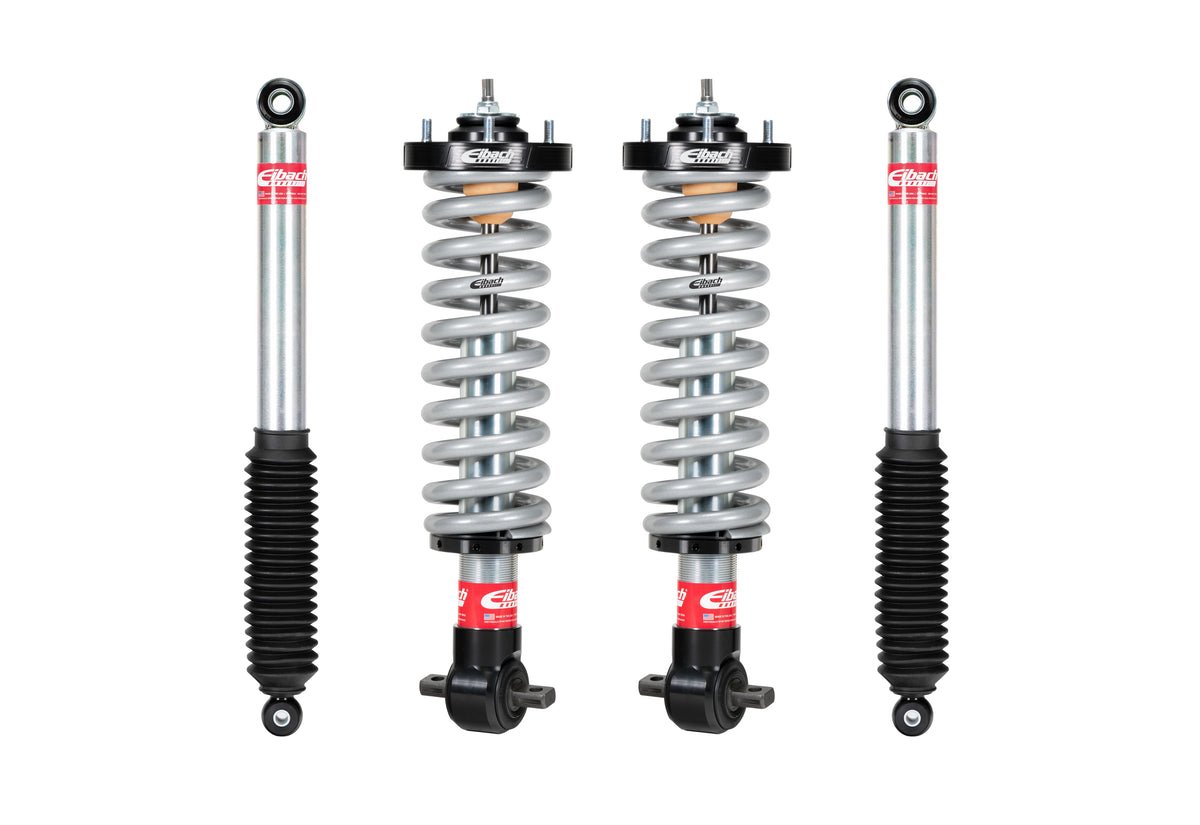

![Eibach Pro-Truck-Lift Stage 2 for 2014-2018 Chevy Silverado 1500 (E86-23-032-01-22)](http://lsdmotorsports.com/cdn/shop/files/eibach-e86230320122-silverado-1.jpg?v=1718837664&width=1445)
Product Description
Eibach's PRO-TRUCK-LIFT STAGE 2 combines our threaded height adjustable coilovers and sport shocks for fine tuning of ride height, delivering improved off-road performance. The PRO-TRUCK-LIFT STAGE 2 System shares the same rear components (lift springs, sport shocks, air bag delete) as our STAGE 1 system with an upgrade in adjustability up front. The front 2.0 coilovers were developed utilizing our extended-travel mono tube design and variable force valving that delivers control during on-road transit and compliance for maximum traction on the trails.
The front PRO-TRUCK Coilover 2.0's allows for precise ride height adjustment which is especially when compensating for additional weight. This is important when trucks are equipped with heavy gear such as metal front bumpers, winches, lights, skid plates, and more.
The rear PRO-TRUCK Sport Shocks are perfectly tuned to accent the front coilover setup. Like all Eibach's dampers, the PRO-TRUCK Sport Shocks deliver a balance ride both on and off-road. The dampers are also designed to accommodate an additional lift block or leaf pack if desired on leaf-sprung applications.
Product Key Features
- Lift heights ranging from 2-4" depending on application
- Threaded spring perch for fine height adjustment
- Developed to provide balanced ride quality and control, both on and off-road
- Increased travel and ground clearance
- Monotube damper design
- Stage 2 system featuring Pro-Truck-Coilover 2.0's + Rear Sport Shocks + Pro-Lift-Kit Springs
- Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible
- Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving
- Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
- Engineered, Tested and Manufactured by Eibach in the U.S.A.
- Limited Lifetime Warranty
Product Specifications
Brand: | Eibach |
Product Category: | Suspension Components |
Product Type: | Lift Kits |
Position: | Front and Rear |
Height Adjustment (Front): | +1.75" to +4.0" |
Height Adjustment (Rear): | +0.0" to +1.5" |
Product Documents
Product Installation Guide (Coilovers)
Product Installation Guide (Dampers)
Product Warranty
Product Applications
Year | Make | Model |
---|---|---|
2018 | Chevrolet | Silverado 1500 |
2017 | Chevrolet | Silverado 1500 |
2016 | Chevrolet | Silverado 1500 |
2015 | Chevrolet | Silverado 1500 |
2014 | Chevrolet | Silverado 1500 |
